AD8232 ECG Sensor Module – Heart Rate and ECG Monitoring Module
The AD8232 ECG Sensor Module is a compact, cost-effective board designed to measure the electrical activity of the heart. Based on the Analog Devices AD8232 analog front-end IC, this module captures ECG (electrocardiogram) signals for heart rate monitoring applications. It is ideal for wearable health devices, biofeedback systems, and biomedical development projects.
The module is capable of extracting, amplifying, and filtering small biopotential signals in noisy environments, making it perfect for use in embedded systems and real-time health monitoring.
Product Specifications
| Feature | Specification |
|---|---|
| IC Used | Analog Devices AD8232 |
| Operating Voltage | 3.3V – 5V DC |
| Output Type | Analog ECG waveform |
| Interface | 3-pin (OUTPUT, 3.3V–5V, GND) + 3 electrode leads |
| Electrode Type | Snap-on type for easy connection |
| Onboard Indicators | LED to indicate heartbeat detection |
| Dimensions | Approx. 35mm x 25mm |
| ECG Lead Configuration | Single-lead (RA, LA, RL) |
Key Features
-
Accurate ECG Monitoring: Captures real-time heart activity with precision.
-
Compact & Lightweight: Ideal for wearable and portable medical devices.
-
Low Power Consumption: Designed for continuous monitoring applications.
-
Built-in Filtering: Removes motion artifacts and noise for clean ECG signals.
-
User-Friendly Interface: Simple analog output, easily readable by Arduino, ESP32, Raspberry Pi, etc.
-
Heartbeat LED Indicator: Visual cue for each detected heartbeat.
Applications
-
Heart rate and ECG monitoring systems
-
Fitness and health tracking devices
-
Biomedical signal analysis
-
Wearable health monitors
-
Research and educational projects
-
Patient monitoring and telemedicine devices
Package Includes
-

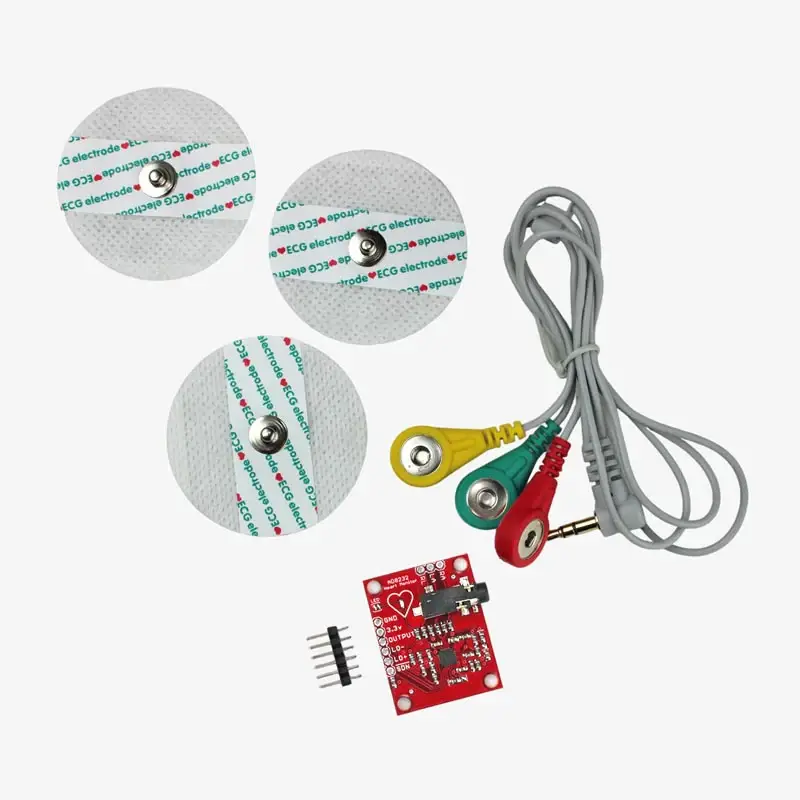

1 x AD8232 ECG Sensor Module
-
1 x 3-lead electrode cable (RA, LA, RL)
-
3 x Disposable ECG electrode pads
