Description

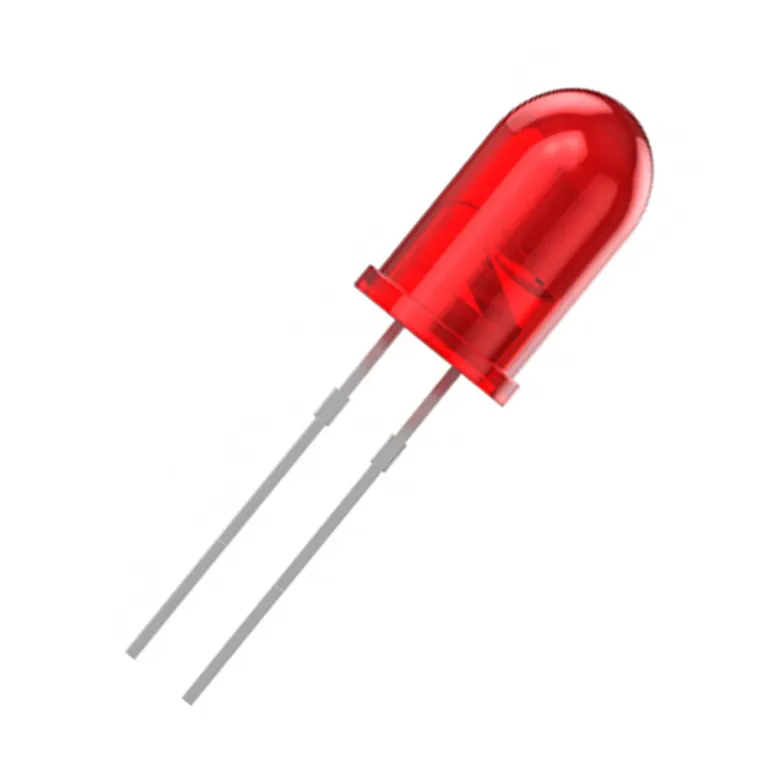

5mm Diffused Red LED – Bright Indicator Light for Electronics Projects
The 5mm Diffused Red LED is a standard, high-efficiency light-emitting diode designed for clear visibility and consistent brightness in various electronic applications. With its diffused lens, this LED provides uniform light dispersion, making it ideal for indicators, displays, DIY electronics, and embedded systems. Its compact size, low power consumption, and vibrant red color make it a go-to component for both beginners and professionals.
Product Specifications
| Feature | Specification |
|---|---|
| LED Type | 5mm Diffused Red LED |
| Lens Type | Diffused (Milky/Frosted) |
| Emitting Color | Red |
| Forward Voltage (Vf) | 1.8V to 2.2V |
| Forward Current (If) | 20 mA (typical) |
| Wavelength | ~625 nm (Red) |
| Viewing Angle | ~60° to 80° (Wide Dispersion) |
| Brightness | ~1000–2000 mcd (typical) |
| Mounting Type | Through-Hole |
| Lead Type | Round, Radial Leads |
| Polarity | Long lead = Anode (+), Short lead = Cathode (–) |
| Package Diameter | 5mm |
| RoHS Compliant | Yes |
Key Features:
-
Uniform Light Dispersion: The diffused lens provides soft, evenly distributed light, reducing glare and hot spots.
-
Bright Red Emission: Emits a vibrant red color ideal for status indicators, alarms, and visual cues in electronic devices.
-
Energy Efficient: Consumes low current, making it perfect for battery-powered or energy-conscious designs.
-
Wide Viewing Angle: Ensures visibility from multiple angles—ideal for displays and user interfaces.
-
Easy to Use: Standard 5mm size with through-hole leads, compatible with breadboards and PCBs.
-
Durable and Long-lasting: Solid-state construction with high reliability and long operating life.
Benefits:
-
Perfect for Visual Indicators: Use in panels, circuits, toys, models, and learning kits.
-
Safe and Low Heat: Operates cool to the touch even with continuous use.
-
Beginner Friendly: Ideal for learning electronics, soldering practice, and school projects.
-
Reliable Performance: Stable light output with consistent quality over extended use.
Applications:
-
Status and Power Indicators: Display system status, error states, or power ON/OFF.
-
DIY Electronics Projects: Suitable for Arduino, Raspberry Pi, and other microcontroller platforms.
-
Consumer Electronics: Use in toys, chargers, home appliances, and more.
-
Educational Kits: Great for electronics training, STEM education, and prototyping.
-
Wearable or Decorative Lighting: Compact, low-power option for embedded or creative lighting designs.
