Load Cell Weight Sensor 5kg - Image 1
Click to enlarge

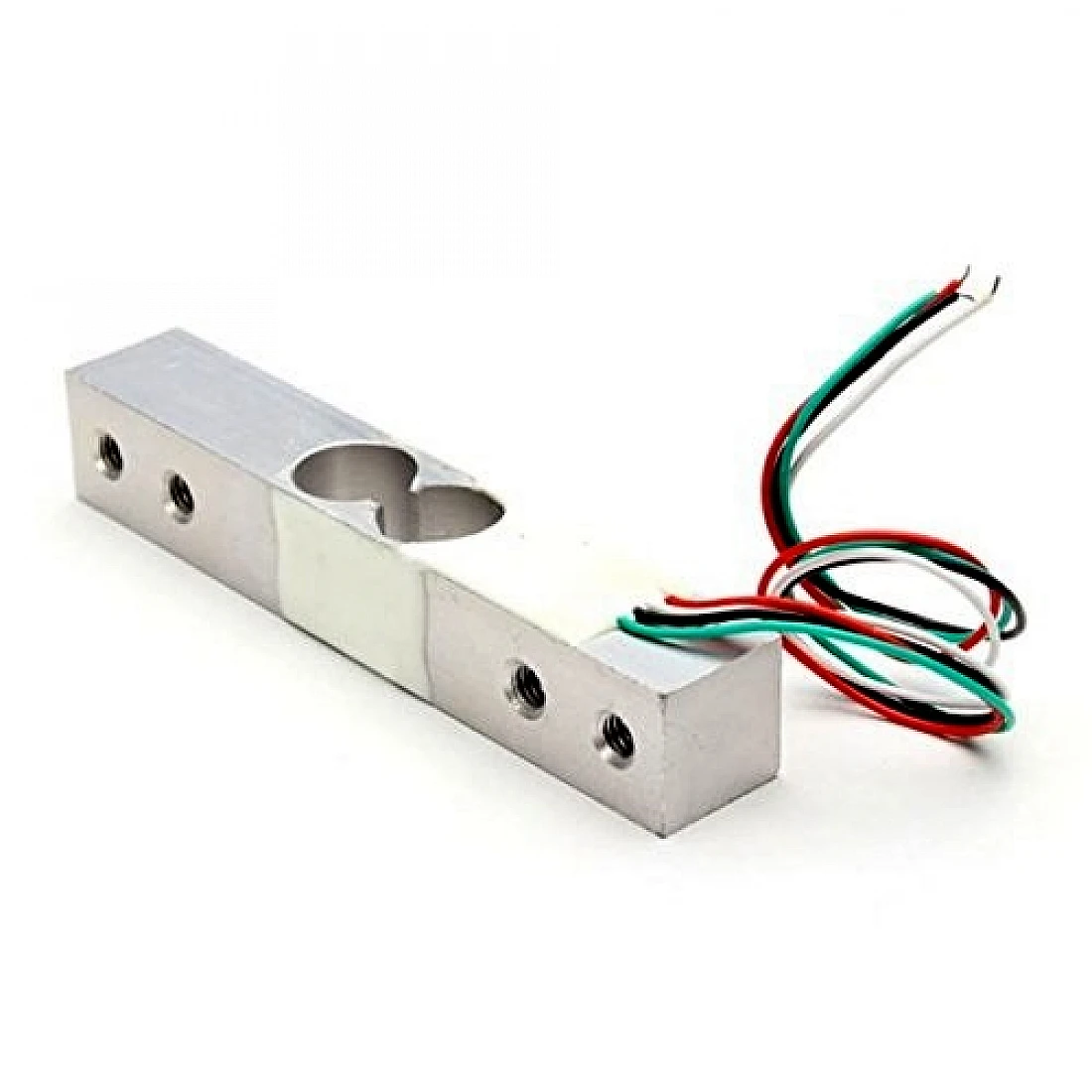

Load Cell Weight Sensor 5kg

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹130.00

Add to compare
Add to wishlist
20 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

5kg Load Cell Weight Sensor – Precision Strain Gauge for Weight and Force Measurement

The 5kg Load Cell is a high-accuracy weight sensor based on strain gauge technology, capable of measuring forces up to 5 kilograms. Designed for precision weight detection and force measurement, this sensor converts mechanical force into an electrical signal, making it ideal for digital scales, industrial automation, and smart weighing systems.

Constructed with durable aluminum alloy and featuring four strain gauges in a Wheatstone bridge configuration, this sensor offers reliable and repeatable performance. It is compatible with the HX711 amplifier module, making integration with microcontrollers like Arduino, ESP32, and Raspberry Pi simple and effective.

Key Features

  • Measures weight up to 5kg with high accuracy

  • Durable aluminum alloy body

  • Based on strain gauge technology

  • Easy integration with HX711 amplifier

  • Compact and lightweight design

  • Ideal for DIY digital scales, smart weighing systems, and IoT applications

Product Specifications

Feature Specification
Sensor Type Load Cell (Strain Gauge)
Rated Load 5kg
Output Sensitivity 1.0 ± 0.1 mV/V
Operating Voltage 5V (via amplifier like HX711)
Accuracy High precision (requires calibration)
Structure Aluminum Alloy
Mounting Holes Yes, for easy installation
Recommended Amplifier HX711 Load Cell Amplifier
Dimensions ~75mm x 12.7mm x 12.7mm (varies by model)
Operating Temperature -20°C to +65°C
Compatible Platforms Arduino, ESP32, STM32, Raspberry Pi, etc.

Applications

  • Digital weight scales

  • Kitchen and postal scales

  • Smart weighing systems

  • Industrial automation

  • Robotics and tension sensing

  • IoT-based load monitoring solutions
